Android – Flutter – Displaying two ListViews on one screen

androiddartflutterioslistview

I'm trying to add a horizontal listView.builder on top of another vertical listView.builder. Both listViews should have text on top of both.

This is what I've made so far, only the top horizontal listView.builder is drawn, when I try to click where the bottom vertical listView.builder is supposed to be drawn, the app crashes in debug and I get the error: NoSuchMethodError: The getter 'visible' was called on null.

Also, I don't know how to add the two text fields, so I've left them out.

I have quite a lot of code, if you need to view more of it please do so here

Widget _cryptoWidget() {
return new Container(
    child: new Column(
      children: <Widget>[
        new Flexible(
          child: new ListView.builder(
              scrollDirection: Axis.horizontal,
              itemBuilder: (BuildContext context, int index) {
              return _listViewFiller();
            }
          ),
        ),
        new Flexible(
          child: new RefreshIndicator(
          key: refreshKey,
          child: new ListView.builder(
            scrollDirection: Axis.horizontal,
            itemCount: _currencies.length,
            itemBuilder: (BuildContext context, int index) {
              final int i = index ~/ 2;
              final Crypto currency = _currencies[i];
              final MaterialColor color = _colors[i % _colors.length];
              if (index.isOdd) {
                return new Divider();
              }
              return _getListItemUi(currency, color);
            },
          ),
          onRefresh:refreshList,
        ),
        )
      ],
    )
  );
 }

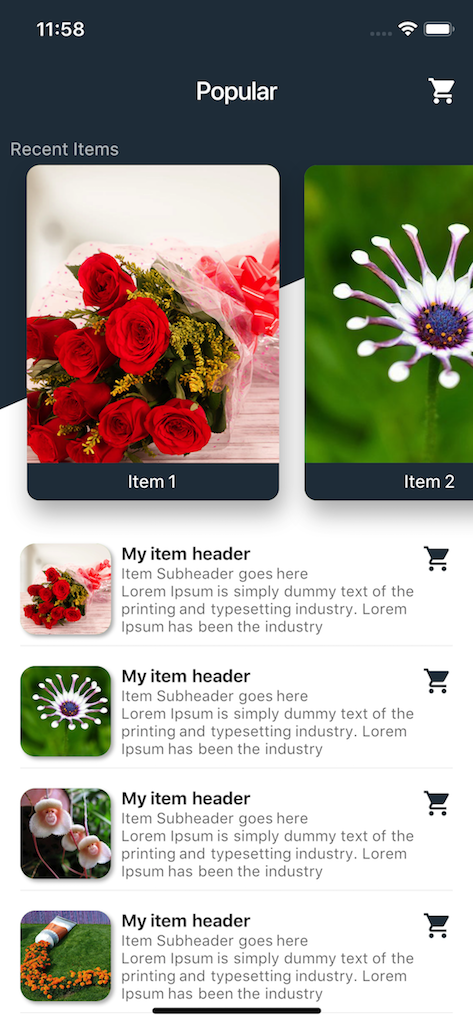

Best Solution

import 'package:flutter/material.dart';
import 'background.dart';

void main() => runApp(new MyApp());

class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return new MaterialApp(
  title: 'Flutter Demo',
  theme: new ThemeData(
    primarySwatch: Colors.blue,
  ),
  debugShowCheckedModeBanner: false,
  home: new MyHomePage(title: 'Popular'),
);
}
}

class MyHomePage extends StatefulWidget {
MyHomePage({Key key, this.title}) : super(key: key);

final String title;

@override
_MyHomePageState createState() => new _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
List<String> items = [
"Item 1",
"Item 2",
"Item 3",
"Item 4",
"Item 5",
"Item 6",
"Item 7",
"Item 8"
];

@override
Widget build(BuildContext context) {
final _width = MediaQuery.of(context).size.width;
final _height = MediaQuery.of(context).size.height;

final headerList = new ListView.builder(
  itemBuilder: (context, index) {
    EdgeInsets padding = index == 0?const EdgeInsets.only(
        left: 20.0, right: 10.0, top: 4.0, bottom: 30.0):const EdgeInsets.only(
        left: 10.0, right: 10.0, top: 4.0, bottom: 30.0);

    return new Padding(
      padding: padding,
      child: new InkWell(
        onTap: () {
          print('Card selected');
        },
        child: new Container(
          decoration: new BoxDecoration(
            borderRadius: new BorderRadius.circular(10.0),
            color: Colors.lightGreen,
            boxShadow: [
              new BoxShadow(
                  color: Colors.black.withAlpha(70),
                  offset: const Offset(3.0, 10.0),
                  blurRadius: 15.0)
            ],
            image: new DecorationImage(
              image: new ExactAssetImage(
                  'assets/img_${index%items.length}.jpg'),
              fit: BoxFit.fitHeight,
            ),
          ),
        //                                    height: 200.0,
          width: 200.0,
          child: new Stack(
            children: <Widget>[
              new Align(
                alignment: Alignment.bottomCenter,
                child: new Container(
                    decoration: new BoxDecoration(
                        color: const Color(0xFF273A48),
                        borderRadius: new BorderRadius.only(
                            bottomLeft: new Radius.circular(10.0),
                            bottomRight: new Radius.circular(10.0))),
                    height: 30.0,
                    child: new Row(
                      mainAxisAlignment: MainAxisAlignment.center,
                      children: <Widget>[
                        new Text(
                          '${items[index%items.length]}',
                          style: new TextStyle(color: Colors.white),
                        )
                      ],
                    )),
              )
            ],
          ),
        ),
      ),
    );
  },
  scrollDirection: Axis.horizontal,
  itemCount: items.length,
);

final body = new Scaffold(
  appBar: new AppBar(
    title: new Text(widget.title),
    elevation: 0.0,
    backgroundColor: Colors.transparent,
    actions: <Widget>[
      new IconButton(icon: new Icon(Icons.shopping_cart, color: Colors.white,), onPressed: (){})
    ],
  ),
  backgroundColor: Colors.transparent,
  body: new Container(
    child: new Stack(
      children: <Widget>[
        new Padding(
          padding: new EdgeInsets.only(top: 10.0),
          child: new Column(
            crossAxisAlignment: CrossAxisAlignment.center,
            mainAxisSize: MainAxisSize.max,
            mainAxisAlignment: MainAxisAlignment.start,
            children: <Widget>[
              new Align(
                alignment: Alignment.centerLeft,
                child: new Padding(
                    padding: new EdgeInsets.only(left: 8.0),
                    child: new Text(
                      'Recent Items',
                      style: new TextStyle(color: Colors.white70),
                    )),
              ),
              new Container(
                  height: 300.0, width: _width, child: headerList),
              new Expanded(child:
              ListView.builder(itemBuilder: (context, index) {
                return new ListTile(
                  title: new Column(
                    children: <Widget>[
                      new Row(
                        crossAxisAlignment: CrossAxisAlignment.start,
                        children: <Widget>[
                          new Container(
                            height: 72.0,
                            width: 72.0,
                            decoration: new BoxDecoration(
                                color: Colors.lightGreen,
                                boxShadow: [
                                  new BoxShadow(
                                      color:
                                      Colors.black.withAlpha(70),
                                      offset: const Offset(2.0, 2.0),
                                      blurRadius: 2.0)
                                ],
                                borderRadius: new BorderRadius.all(
                                    new Radius.circular(12.0)),
                                image: new DecorationImage(
                                  image: new ExactAssetImage(
                                    'assets/img_${index%items.length}.jpg',
                                  ),
                                  fit: BoxFit.cover,
                                )),
                          ),
                          new SizedBox(
                            width: 8.0,
                          ),
                          new Expanded(
                              child: new Column(
                                mainAxisAlignment:
                                MainAxisAlignment.start,
                                crossAxisAlignment:
                                CrossAxisAlignment.start,
                                children: <Widget>[
                                  new Text(
                                    'My item header',
                                    style: new TextStyle(
                                        fontSize: 14.0,
                                        color: Colors.black87,
                                        fontWeight: FontWeight.bold),
                                  ),
                                  new Text(
                                    'Item Subheader goes here\nLorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry',
                                    style: new TextStyle(
                                        fontSize: 12.0,
                                        color: Colors.black54,
                                        fontWeight: FontWeight.normal),
                                  )
                                ],
                              )),
                          new Icon(
                            Icons.shopping_cart,
                            color: const Color(0xFF273A48),
                          )
                        ],
                      ),
                      new Divider(),
                    ],
                  ),
                );
              }))
            ],
          ),
        ),
      ],
    ),
  ),
);

return new Container(
  decoration: new BoxDecoration(
    color: const Color(0xFF273A48),
  ),
  child: new Stack(
    children: <Widget>[
      new CustomPaint(
        size: new Size(_width, _height),
        painter: new Background(),
        ),
       body,
      ],
    ),
  );
 }
}

A very nice example with complete source code here Styled list

Related Solutions

Android – How to get screen dimensions as pixels in Android

If you want the display dimensions in pixels you can use getSize:

Display display = getWindowManager().getDefaultDisplay();
Point size = new Point();
display.getSize(size);
int width = size.x;
int height = size.y;

If you're not in an Activity you can get the default Display via WINDOW_SERVICE:

WindowManager wm = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE);
Display display = wm.getDefaultDisplay();

If you are in a fragment and want to acomplish this just use Activity.WindowManager (in Xamarin.Android) or getActivity().getWindowManager() (in java).

Before getSize was introduced (in API level 13), you could use the getWidth and getHeight methods that are now deprecated:

Display display = getWindowManager().getDefaultDisplay();
int width = display.getWidth();  // deprecated
int height = display.getHeight();  // deprecated

For the use case, you're describing, however, a margin/padding in the layout seems more appropriate.

Another way is: DisplayMetrics

A structure describing general information about a display, such as its size, density, and font scaling. To access the DisplayMetrics members, initialize an object like this:

DisplayMetrics metrics = new DisplayMetrics();
getWindowManager().getDefaultDisplay().getMetrics(metrics);

We can use widthPixels to get information for:

"The absolute width of the display in pixels."

Example:

Log.d("ApplicationTagName", "Display width in px is " + metrics.widthPixels);

API level 30 update

final WindowMetrics metrics = windowManager.getCurrentWindowMetrics();
 // Gets all excluding insets
 final WindowInsets windowInsets = metrics.getWindowInsets();
 Insets insets = windowInsets.getInsetsIgnoreVisibility(WindowInsets.Type.navigationBars()
         | WindowInsets.Type.displayCutout());

 int insetsWidth = insets.right + insets.left;
 int insetsHeight = insets.top + insets.bottom;

 // Legacy size that Display#getSize reports
 final Rect bounds = metrics.getBounds();
 final Size legacySize = new Size(bounds.width() - insetsWidth,
         bounds.height() - insetsHeight);

Flutter – How to make flutter card auto adjust its height depend on content

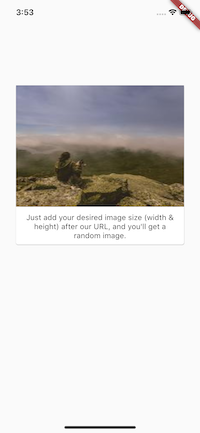

You want to wrap your card in a Column because the inner Column take full height

 Column(children: <Widget>[
      Card(
        margin: const EdgeInsets.all(10.0),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            AspectRatio(
              aspectRatio: 18.0 / 13.0,
              child: Image.network(
               "https://picsum.photos/200",
                fit: BoxFit.fill,
              ),
            ),
            Padding(
              padding: EdgeInsets.fromLTRB(16.0, 12.0, 16.0, 8.0),
              child: Column(
                crossAxisAlignment: CrossAxisAlignment.start,
                children: [
                  Text(
                    "Just add your desired image size (width & height) after our URL, and you'll get a random image.",
                    textAlign: TextAlign.center,
                  ),
                ],
              ),
            ),
          ],
        ),
      )
])

Best Solution
