Android – Google Maps API v2 – NoClassDefFoundError

androidgoogle-mapsgoogle-maps-android-api-2noclassdeffounderror

I try to run Google Maps with Intellij IDEA 12.

I already tried advices:

and so on. But unfortunately that doesn't work for me.

My configuration:

1) real device htc wildefire s, android 2.3.5

2) enter image description here

3) AndroidManifest.xml:

      <manifest xmlns:android="http://schemas.android.com/apk/res/android"
              package="ru.ergeslab.TransportScheduleYaroslavl"
              android:installLocation="auto"
              android:versionCode="1"
              android:versionName="1.0">
        <uses-feature
                android:glEsVersion="0x00020000"
                android:required="true"/>
        <uses-permission android:name="android.permission.INTERNET"/>
        <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
        <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
        <uses-permission android:name="com.google.android.providers.gsf.permission.READ_GSERVICES"/>

        <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>
        <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>
        <permission
                android:name="ru.ergeslab.TransportScheduleYaroslavl.permission.MAPS_RECEIVE"
                android:protectionLevel="signature"/>
        <uses-permission android:name="ru.ergeslab.TransportScheduleYaroslavl.permission.MAPS_RECEIVE"/>
        <uses-sdk
                android:minSdkVersion="10"
                android:targetSdkVersion="16" />
        <application android:label="@string/app_name">
            <meta-data
                    android:name="com.google.android.maps.v2.API_KEY"
                    android:value="MY_KEY"/>
            <uses-library android:name="com.google.android.maps" />
            <activity android:name="MainActivity"
                      android:label="@string/app_name">
                <intent-filter>
                    <action android:name="android.intent.action.MAIN"/>
                    <category android:name="android.intent.category.LAUNCHER"/>
                </intent-filter>
            </activity>
        </application>
    </manifest>

4) MainActivity:

<pre>
package ru.ergeslab.TransportScheduleYaroslavl;


import android.os.Bundle;
import android.support.v4.app.FragmentActivity;

public class MainActivity extends FragmentActivity {


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

    }


}

5) main.xml:

<?xml version="1.0" encoding="utf-8"?>
<fragment xmlns:android="http://schemas.android.com/apk/res/android"
          android:id="@+id/map"
          android:name="com.google.android.gms.maps.SupportMapFragment"
          android:layout_width="match_parent"
          android:layout_height="match_parent" />

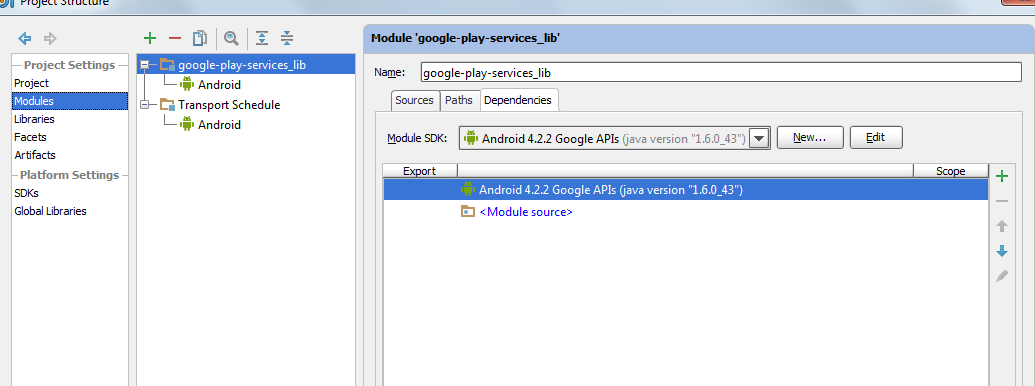

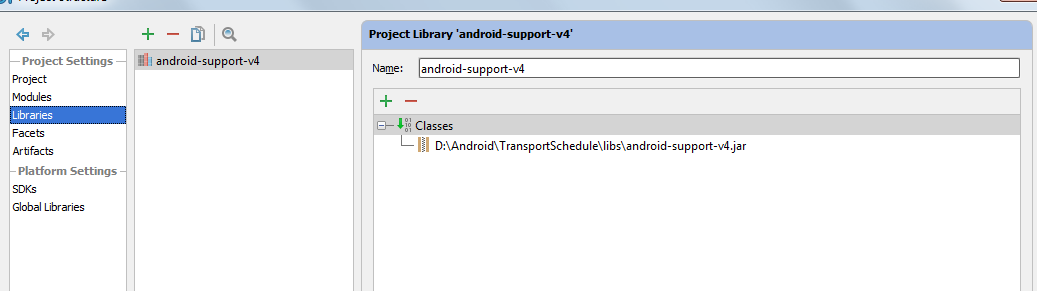

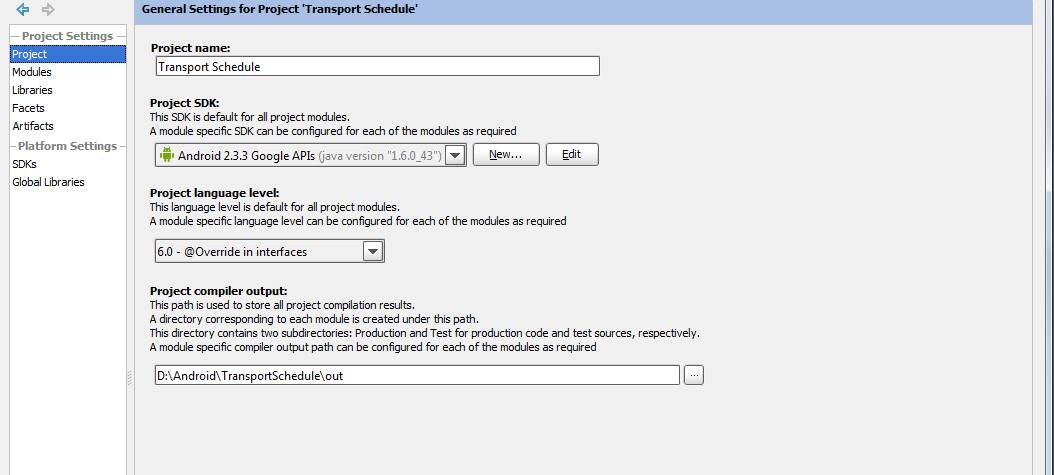

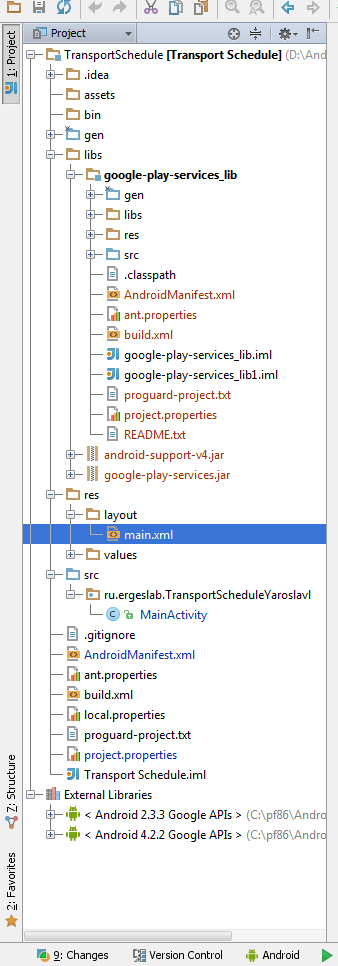

6) IDE project settings:
enter image description here

enter image description here

enter image description here

enter image description here

enter image description here

Full Android logcat:

04-02 21:27:07.718: ERROR/AndroidRuntime(24277): FATAL EXCEPTION: main
        java.lang.NoClassDefFoundError: com.google.android.gms.R$styleable
        at com.google.android.gms.maps.GoogleMapOptions.createFromAttributes(Unknown Source)
        at com.google.android.gms.maps.SupportMapFragment.onInflate(Unknown Source)
        at android.support.v4.app.FragmentActivity.onCreateView(FragmentActivity.java:279)
        at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:563)
        at android.view.LayoutInflater.inflate(LayoutInflater.java:386)
        at android.view.LayoutInflater.inflate(LayoutInflater.java:320)
        at android.view.LayoutInflater.inflate(LayoutInflater.java:276)
        at com.android.internal.policy.impl.PhoneWindow.setContentView(PhoneWindow.java:250)
        at android.app.Activity.setContentView(Activity.java:1712)
        at ru.ergeslab.TransportScheduleYaroslavl.MainActivity.onCreate(MainActivity.java:13)
        at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1072)
        at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:1794)
        at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:1851)
        at android.app.ActivityThread.access$1500(ActivityThread.java:132)
        at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1038)
        at android.os.Handler.dispatchMessage(Handler.java:99)
        at android.os.Looper.loop(Looper.java:150)
        at android.app.ActivityThread.main(ActivityThread.java:4277)
        at java.lang.reflect.Method.invokeNative(Native Method)
        at java.lang.reflect.Method.invoke(Method.java:507)
        at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:839)
        at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:597)
        at dalvik.system.NativeStart.main(Native Method)

Any help is greatly appreciated.

Best Solution

I finally ran my application!

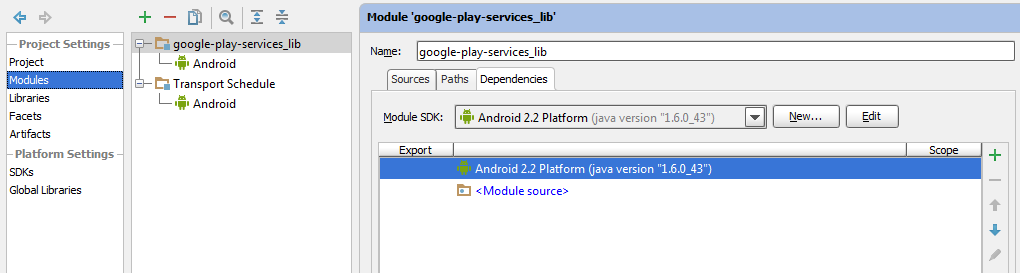

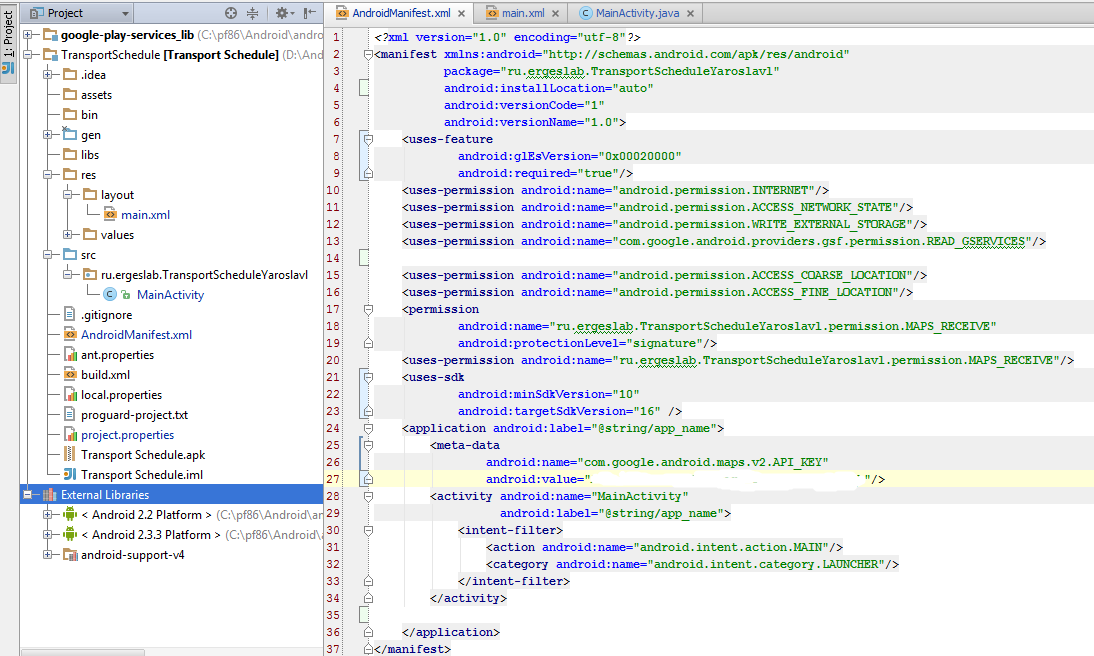

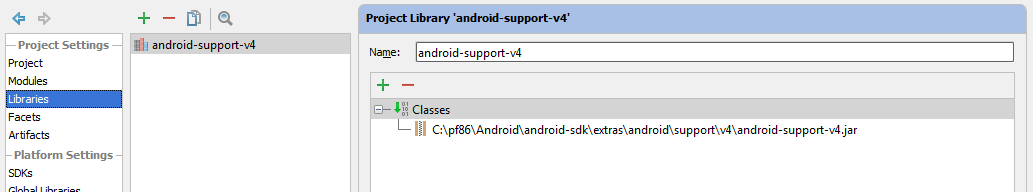

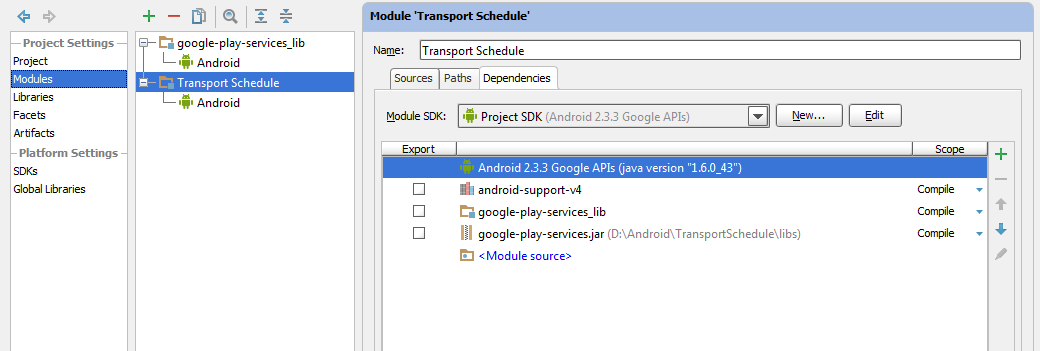

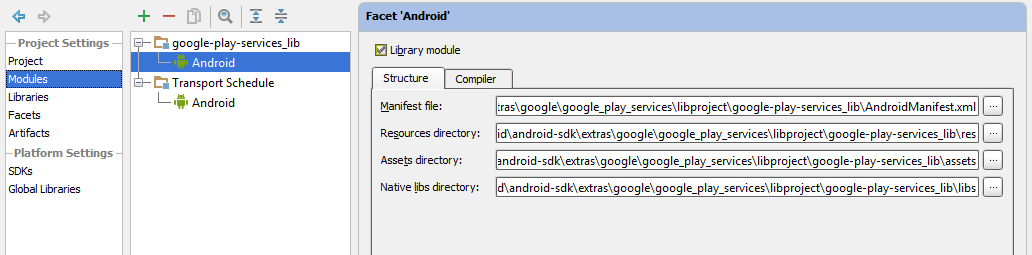

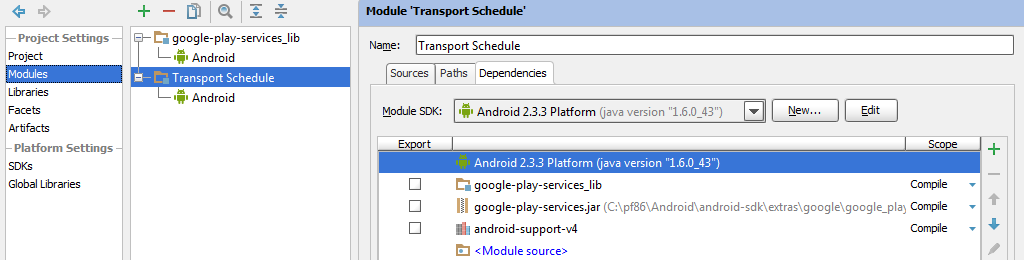

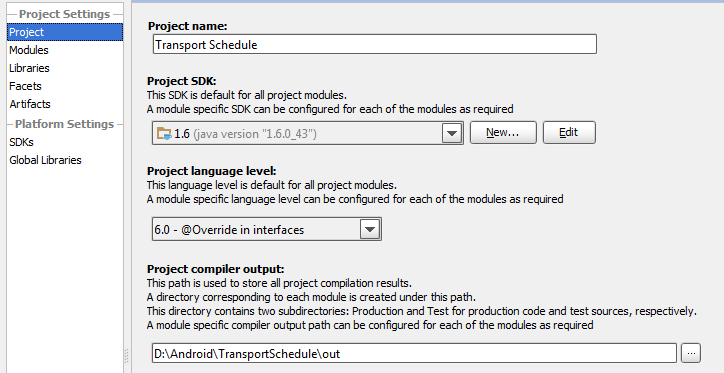

I didn't edit manifest, layout and activity, just updated project settings:

enter image description here

enter image description here

enter image description here

enter image description here

enter image description here

enter image description here

I hope this will help someone.
