PHP Debugger will not stop at breakpoints: Eclipse & Xdebug

breakpointsdebuggingeclipsephpxdebug


Client Side Tools: ( No Apache, No PHP )


Eclipse for PHP Developers

Version: Oxygen.2 Release (4.7.2)

Build id: 20171218-0600

Redhat Enterprise Linux 6.9

java version "1.8.0_101"

Java(TM) SE Runtime Environment (build 1.8.0_101-b13)

Java HotSpot(TM) 64-Bit Server VM (build 25.101-b13, mixed mode)


Remote Server Where The PHP web app is:


PHP 5.6.5

Zend Engine v2.6.0, Copyright (c) 1998-2014 Zend Technologies

with Zend OPcache v7.0.4-dev, Copyright (c) 1999-2014, by Zend Technologies

with Xdebug v2.2.7, Copyright (c) 2002-2015, by Derick Rethans


I've found previous posts on this topic. I didn't understand all of the things to try. I tried what I could understand, but did not have any luck. Mostly just using xdebug_break(); ( again, no luck )


I am using Eclipse and Xdebug to debug a remote PHP web site. My problem is I can not get the debugger to stop on the breakpoints I set.

I am doing remote PHP development with Eclipse and a "Synchronized PHP Project. Nothing except Eclipse is running on my computer.

I am using the Xdebug debugger on the remote server through Eclipse.

When I use the debugger it will go to the index.php. I can step through for a while and see the value of variables.

The problem is that Xdebug will not stop at any of the breakpoints I set.

I am including my Xdebug settings

Any clues as to how to find and fix the problem would be welcome

Xdebug Settings:

xdebug support,enabled
Version,2.2.7

DBGp - Common DeBuGger Protocol,$Revision: 1.145 $

Directive,Local Value,Master Value

xdebug.auto_trace,Off,Off
xdebug.cli_color,0,0
xdebug.collect_assignments,Off,Off

xdebug.collect_includes,On,On

xdebug.collect_params,0,0
xdebug.collect_return,Off,Off
xdebug.collect_vars,Off,Off

xdebug.coverage_enable,On,On
xdebug.default_enable,On,On

xdebug.dump.COOKIE,no value,no value
xdebug.dump.ENV,no value,no value
xdebug.dump.FILES,no value,no value
xdebug.dump.GET,no value,no value
xdebug.dump.POST,no value,no value
xdebug.dump.REQUEST,no value,no value
xdebug.dump.SERVER,no value,no value
xdebug.dump.SESSION,no value,no value

xdebug.dump_globals,On,On
xdebug.dump_once,On,On

xdebug.dump_undefined,Off,Off

xdebug.extended_info,On,On

xdebug.file_link_format,no value,no value

xdebug.max_nesting_level,100,100
xdebug.overload_var_dump,On,On

xdebug.profiler_aggregate,Off,Off
xdebug.profiler_append,Off,Off
xdebug.profiler_enable,Off,Off

xdebug.profiler_enable_trigger,On,On
xdebug.profiler_output_dir,/tmp,/tmp
xdebug.profiler_output_name,cachegrind.out.%t.%s,cachegrind.out.%t.%s

xdebug.remote_autostart,Off,Off

xdebug.remote_connect_back,On,On
xdebug.remote_cookie_expire_time,3600,3600
xdebug.remote_enable,On,On
xdebug.remote_handler,dbgp,dbgp
xdebug.remote_host,127.0.0.1,127.0.0.1
xdebug.remote_log,/var/log/xdebug/xdebug.log,/var/log/xdebug/xdebug.log
xdebug.remote_mode,req,req
xdebug.remote_port,9000,9000

xdebug.scream,Off,Off
xdebug.show_exception_trace,Off,Off
xdebug.show_local_vars,Off,Off
xdebug.show_mem_delta,Off,Off
xdebug.trace_enable_trigger,Off,Off

xdebug.trace_format,0,0
xdebug.trace_options,0,0
xdebug.trace_output_dir,/tmp,/tmp
xdebug.trace_output_name,trace.%c,trace.%c
xdebug.var_display_max_children,128,128
xdebug.var_display_max_data,512,512
xdebug.var_display_max_depth,3,3

Edit

I created an album of screen shots.

First one is an error message from Eclipse that happens when I leave it on all night.

The rest of the screen shots are pieces, in order ( top->down ) of my phpinfo output.

https://imgur.com/a/9DKev

There is no Zend section in my phpinfo() output, though there are these vars

report_zend_debug = on
zend.detect_unicode On
zend.enable_gc  On
zend.multibyte  Off
zend.script_encoding = no value

Best Solution

From your description, it seems that:

  • the debug connection to your remote server is working
  • breaking points work on the index.php, but not anywhere else

My assumption is that the file mapping between local and server code is not working, more precisely eclipse cannot map your files to the server ones.

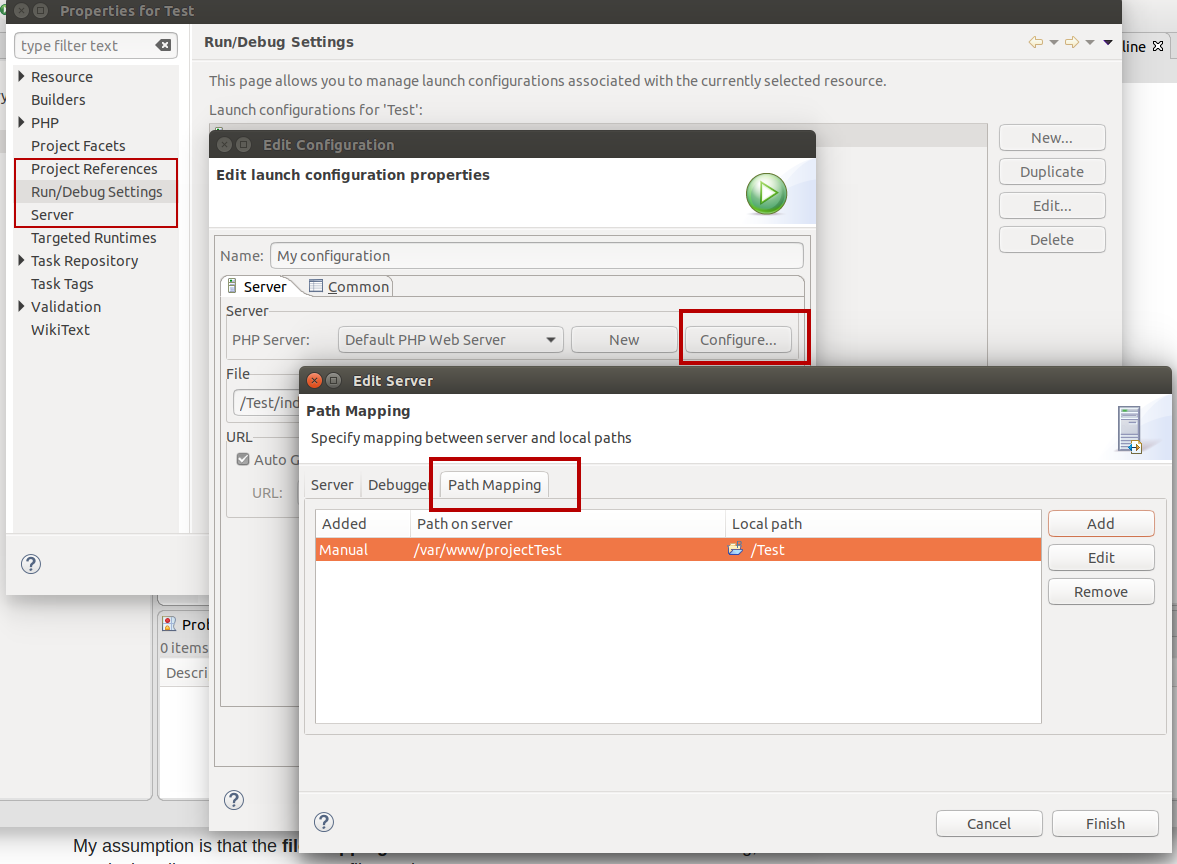

To solve this, you have to set the path mapping setting inside your eclipse project `s run/debug settings.

Go to:

  1. Project -> Properties from the menu
  2. Select Run/Debug Settings
  3. Edit your launch configuration settings
  4. On the tab Server, section PHP server, select configure
  5. "PHP Server" window is opened, select path mapping tab
  6. Set Path on server to your project `s path on server and set Local path to well this is self explanatory.

enter image description here
